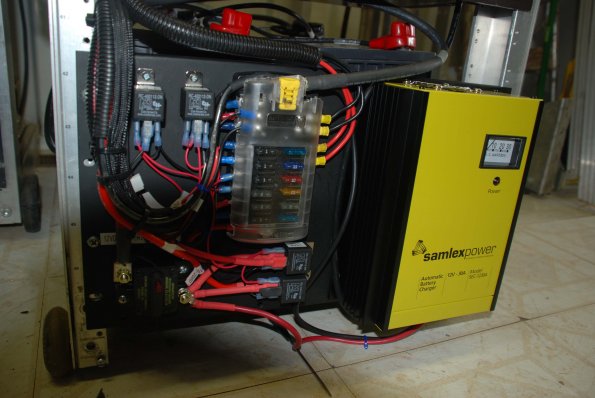

This is a close up of the power distro panel. It includes the fuse block, battery sense, battery revert and fan relays, battery plant circuit breaker and 3 stage 30Amp battery charger.

---
