System 31: Los Angeles
Details for System 31
About the System:

This system and connecting sites have been a several year work in
progress. In April of 2017, CARLA 31 was decommissioned and re-built from
scratch on the same mountain top but in a different building/tower. The
antennas are also being migrated onto a new tower so there
may be degraded service until the final configuration is in place
(expected summer 2017). Please stay tuned for more updates.


Santiago Pk. is one of SoCal's most centralized, high level sites at
nearly 6,000' and covers a large portion of the greater LA basin &
Southland area. The site can effectively reach out to close to 40 million

System 31: Los Angeles

Link PL:162.2
Local PL:88.5
Site Name: Santiago Peak
City:Lake Forrest, CA
Controller:SCom 7330
System Config:Permanent Dual PL Link/Local System

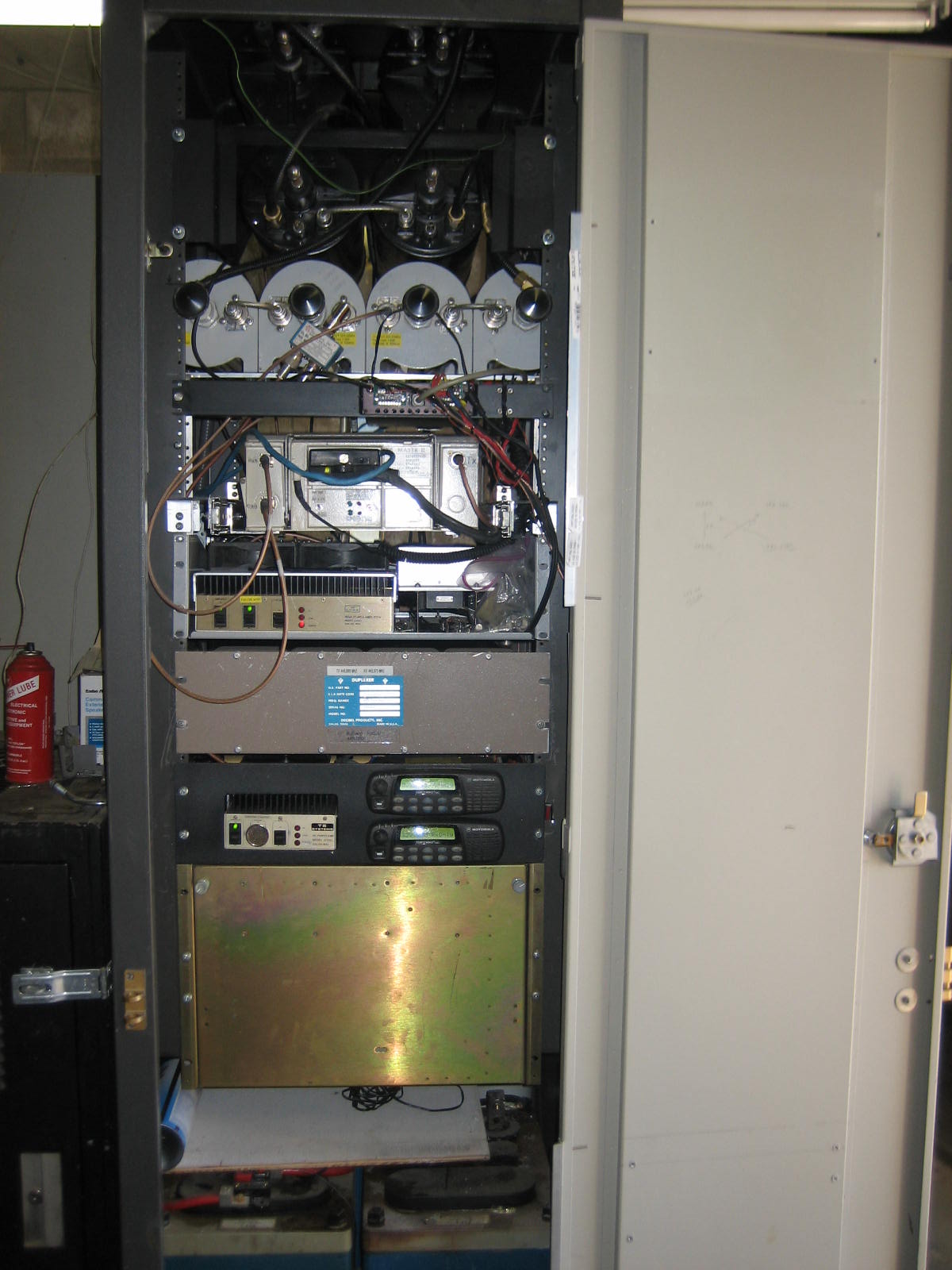

System Equipment Photo
Click the thumbnail below for a larger view

Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

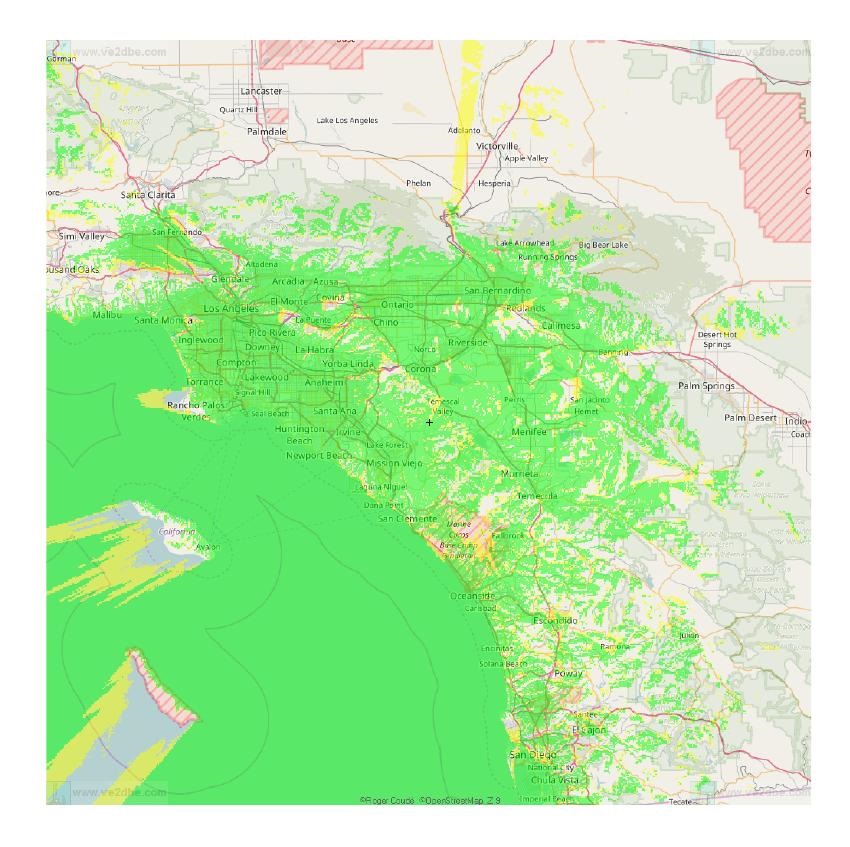

Coverage for System 31
Coverage starts along the I-5 corridor in the North San Fernando Valley
through LA & Orange County to San Diego and into parts of Mexico. The
site covers along the coast North of Malibu through Santa Monica, Long
Beach, Huntington & Newport Beach, Dana Point, San Clemente, Oceanside,
the coastal islands and more. There is coverage towards the east in the
Inland Empire area which include parts of San Bernadino & Riverside
Counties such as Ontario, Oxnard, Corona, Fontana, Rancho Cucamonga,

Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

Technical Data for System 31
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 31
Equipment:Motorola SLR-5700
Transmit Power:40w
Antenna:4 Bay exposed dipole with 8 dB of gain
Click Here to see any current alerts for this system
Degraded ServiceMain Link
Type:RF Link (connects to the Santiago Extension)
Equipment:Motorola CDM
Transmit Power:1w
Status: Main link NB towards VACA Hub is very weak.
Main link at 31 NB towards VACA Hub is
very weak with lots of white noise.
