System 36: Willows
Details for System 36
About the System:

This system was installed as a fill-in for the loss of UHF coverage in the North Sacramento Valley due to the PAVE PAWS radar system @ Beale AFB. The system is only transmitting 5 Watts and favors a pattern towards the NW and a null towards Sonora.


CARLA 36 is numbered as such because it is located at CARLA 6's site and was meant to be a easy reminder where the system is located.

System 36: Willows

Link PL:173.8
Local PL:123.0
Site Name:Snow Mt. Range
City:Stonyford, CA
Controller:SCOM 7330
System Config:Permanent Dual PL Link/Local System

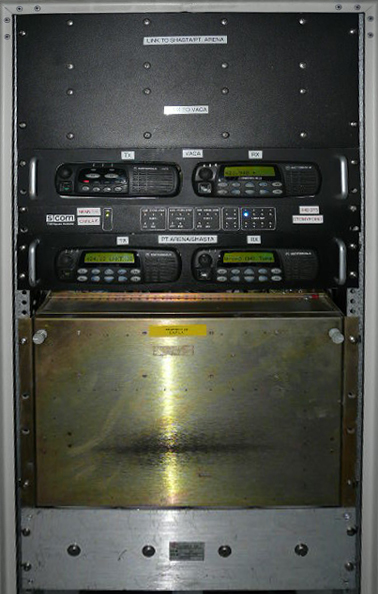

System Equipment Photo
Click the thumbnail below for a larger view

Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

Coverage for System 36
This system covers all of the North Sacramento Valley from Redding to the North to most of Sacramento to the South and the foothills to the East. It has a directional pattern favoring the North-West to minimize co-channel interference to the South-East, where it has a null.

See this system on our Interactive Coverage Map

Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

Technical Data for System 36
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 6
Equipment:GE MASTR II
Transmit Power:1w
Antenna:Corner Reflectors, Dual with 7.8 dB of gain
In ServiceMain Link
Type:RF Link (connects to the Vaca Hub)
Equipment:Motorola CDM
Transmit Power:20w
Antenna:Antennex Y4066 Yagi with 10.2 dB of gain
In ServiceSystem 36
Equipment:Motorola RKR1225
Transmit Power:5w
Antenna:Telewave ANT150D3 2-Bay Dipole with 5 dB of gain
