About System 8:
If you're into winter skiing or summer water sports be sure to bring your HT when you visit the Lake Tahoe area. You can get into the C.A.R.L.A. 8 repeater from most ski resorts in the area and from most places on the lake or around the lake with just an HT and a few watts. A few of our users take kiyaks out on the lake on a fairly regular basis and use their HT to talk back to the "crew at the house" in Tahoe City or, with the link PL, to users on the rest of the system. Take a look at the coverage map below to get an idea of the coverage in the Lake Tahoe Basin.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
New! - See this system on our Interactive Coverage Map
If you're into winter skiing or summer water sports be sure to bring your HT when you visit the Lake Tahoe area. You can get into the C.A.R.L.A. 8 repeater from most ski resorts in the area and from most places on the lake or around the lake with just an HT and a few watts. A few of our users take kiyaks out on the lake on a fairly regular basis and use their HT to talk back to the "crew at the house" in Tahoe City or, with the link PL, to users on the rest of the system. Take a look at the coverage map below to get an idea of the coverage in the Lake Tahoe Basin.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
- If you pause for an extended time during your local conversation the link audio may come back. Just key up with the Local PL to mute incoming link traffic and continue your local conversation.
- Remember, if there is a conversation in progress elsewhere on the network, you will not interfere with it if you hold a conversation on the repeater while using the Local PL.
- If you want link audio to come back right away just "kerchunk" the machine you're on with the Link PL.
- There is a different courtesy tone for local traffic and incoming link traffic so you'll be able to distinguish from which direction the audio traffic is originating.
|
Click below for a larger view:
|

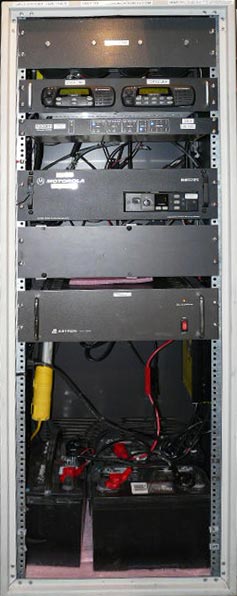

Hardware & Technical Data - Port #1
| Alias: | System 8 |
| Class: | Repeater |
| Type: | RF |
| Equipment: | Motorola RKR-1225 at 15w TX power |
| Antenna: | Cellwave 4 pole offset with 7.2dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #2
| Alias: | Main Link |
| Class: | Link, connects to System 16 |
| Type: | RF |
| Equipment: | Motorola CDM at 20w TX power |
| Antenna: | Telewave with 10.2dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #3
| Alias: | Nevada Backup Link |
| Class: | Backup Link, connects to System 18 |
| Type: | RF |
| Equipment: | Motorola CDM at 20w TX power |
| Antenna: | Antennex Y4063 Yagi with 7dB of gain |
| Status: | In Service |
Coverage
Located at beautiful Lake Tahoe. At over 8,600' above sea level, it overlooks the West Shore, most all of the basin including North through Tahoe City, Carnelian Bay, Kings Beach, Stateline and Incline Village. It covers even more solidly across from it along the East/South side from Sand Harbor through South Lake Tahoe. It can be worked along Emerald Bay on up through Meeks Bay, Tahoma & Homewood but not as solidly. It can even be brought up, marginally, over the East side of Spooner Summit and down into parts of the Carson Valley and highway 50 corridor around Strawberry, Twin Bridges, Kyburz and parts of the Sacramento Valley. C.A.R.L.A. would like to acknowledge Radio Mobile for the use of their program.
