System 19: Hayward
Details for System 19
About the System:

The C.A.R.L.A. 19 repeater works well in the San Francisco Bay Area and also covers the Pleasanton / Livermore area.
It serves as a hop point to tie in C.A.R.L.A. 4.


System 19: Hayward
K6LNK

Frequency:443.325+
Link PL:173.8
Local PL:114.8
Site Name:Walpert Ridge
Elevation:1500'
City:Hayward, CA
Controller:SCOM 7330
System Config:Permanent Dual PL Link/Local System

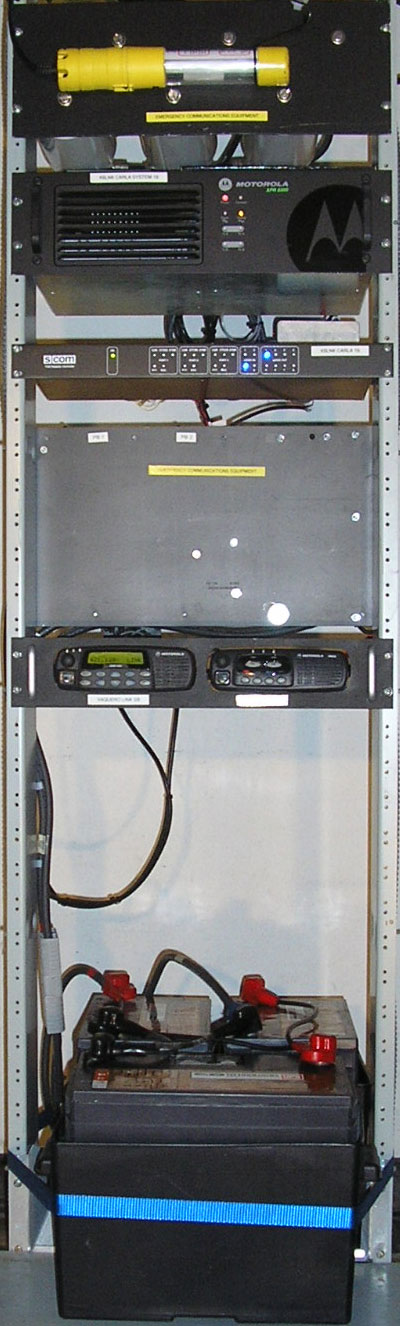

System Equipment Photo
Click the thumbnail below for a larger view



Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

Coverage for System 19
Located above Hayward at 1500', it covers the Tri-Valley area of Pleasanton, Dublin, Livermore and most of the SF Bay Area from South San Jose up through Oakland, San Francisco and parts of Marin.

See this system on our Interactive Coverage Map

Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

Technical Data for System 19
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 19
Equipment:Motorola XPR8300
Transmit Power:20w
Antenna:Super Station Master Omni with 8 dB of gain
Click Here to see any current alerts for this system
In ServiceMain Link
Type:RF Link (connects to the Vaca Hub)
Equipment:Motorola CDM
Transmit Power:20w
Antenna:Telewave 6-Element Yagi with 10.2 dB of gain
In ServiceGreenfield Extension
Type:RF Dedicated Network Extension
Equipment:Motorola CDM
Transmit Power:20w
Antenna:Telewave 6-Element Yagi with 10.2 dB of gain
