Current Alerts for System 27
Special Configuration: Local PL Disabled
The local PL is currently disabled while we troubleshoot falsing on the input.

System 27: Quincy
Details for System 27
System 27: Quincy
K6LNK

Frequency:440.725+
Link PL:173.8
Local PL:100.0
Site Name:Mt. Hough
Elevation:7220'
City:Quincy, CA
Controller:SCOM 7330
System Config:Permanent Dual PL Link/Local System

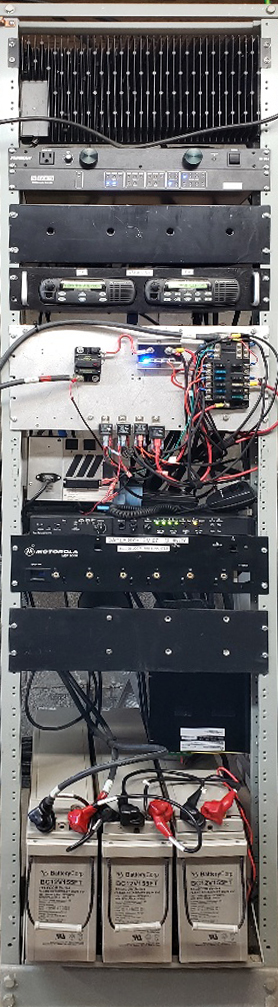

System Equipment Photo
Click the thumbnail below for a larger view



Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

Coverage for System 27
Located above Quincy on Mt. Hough, This site covers the entire Quincy area very well plus has coverage West out Hwy 70 along the Feather River Canyon and East towards Graegle. It also covers a good portion of the Lake Almanor area to the North.

See this system on our Interactive Coverage Map

Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

Technical Data for System 27
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 27
Equipment:Motorola MSF5000 CLB
Transmit Power:25w
Antenna:Telewave 2-Bay Dipole, Exposed with 5 dB of gain
Click Here to see any current alerts for this system
In ServiceMain Link
Type:RF Link (connects to the Vaca Hub)
Equipment:Motorola CDM
Transmit Power:15w
Antenna:Antennex 3-Element Yagi with 6 dB of gain
