System 32: Pacifica
Details for System 32
About the System:

System 32 compliments the rest of the CARLA systems that help bring coverage
to the Northern California coast. Coastal areas can get cut off very easily
by natural disasters and this system is equipped with ~400 Ah's of battery
back-up power. This site also acts as a hop point for the link up to CARLA
33 located above the Mendocino coastal town of Gualala. Between Systems 3,
33, 32, 10 & 29, CARLA is able to cover a wide area of the coastal region.


Tidbits:

This system used to be Roger's, WA6AFT(SK) and was then taken over by Mike
WB6JKV who let CARLA rebuild & integrate it into the network. Roger also
donated the VHF CARLA 35 system that used to be on Vollmer Peak.


System 32: Pacifica
WB6JKV

Frequency:440.725+
Link PL:167.9
Local PL:114.8
Site Name:Montara Mt.
Elevation:1700'
City:Pacifica, CA
Controller:SCOM 7330
System Config:Permanent Dual PL Link/Local System



Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

Coverage for System 32
System 32 covers most of the San Mateo coastal area from Pigeon Point
through Half Moon and the western and southern parts of San Francisco. It
also covers Pt. Reyes and some parts north along the Marin & Sonoma coast.
Some signal gets into the Monterey area and many parts of the San
Francisco Bay Area.


Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

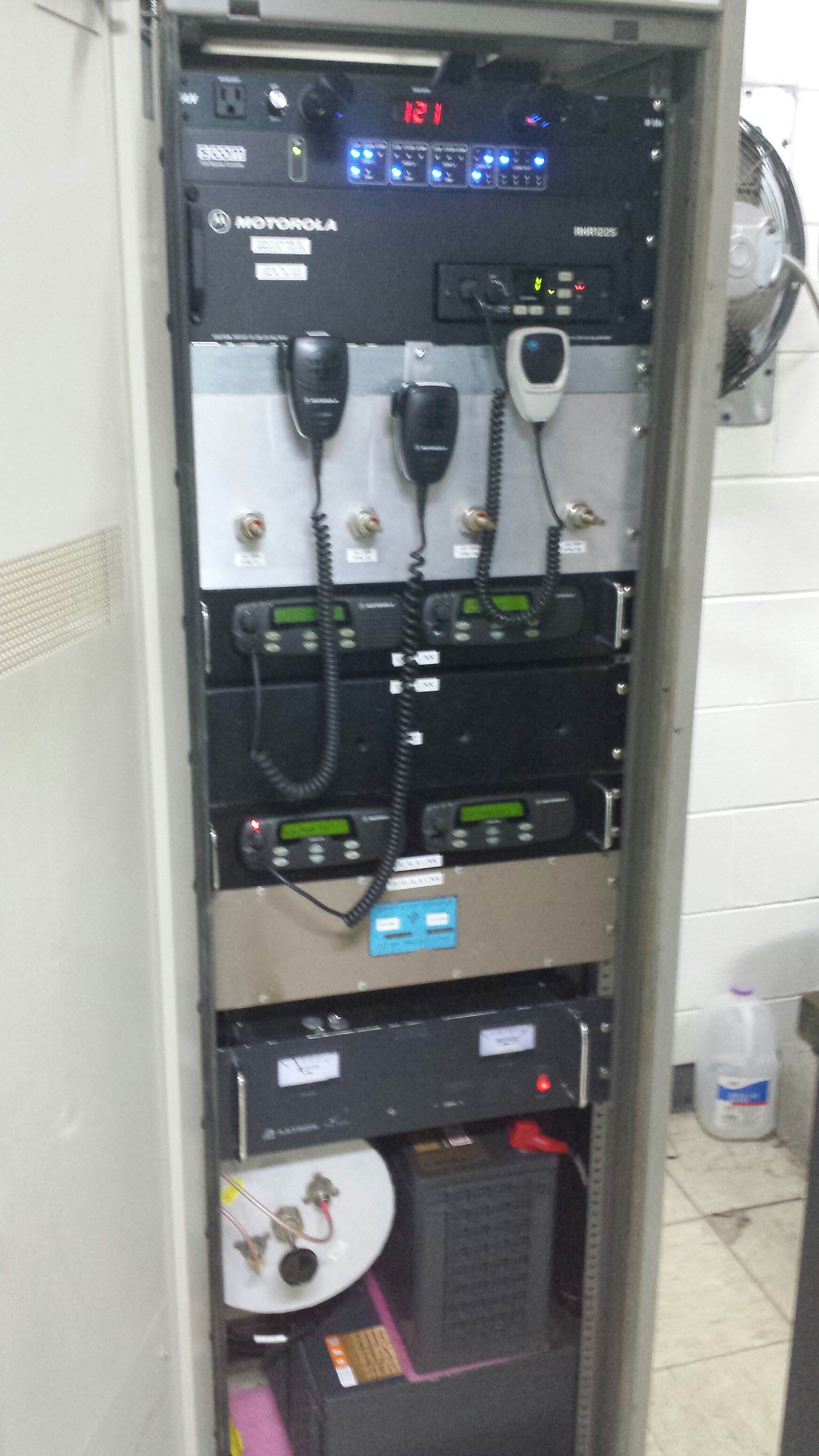

Technical Data for System 32
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 32
Equipment:RKR 1220
Transmit Power:15w
Antenna:db408 with 6 dB of gain
Click Here to see any current alerts for this system
In ServiceMain Link
Type:RF Link (connects to the Vaca Hub)
Equipment:
Transmit Power:15w
Antenna:3 element yagi with 5 dB of gain
In ServiceGualala Extension
Type:RF Dedicated Network Extension
Equipment:
Transmit Power:1w
Antenna:
